可视地下成像仪（土耳其
型号: 黄金门 5米名称: 可视地下成像仪（土耳其价格 询价
   产品详细介绍

（技术咨询：13391988889 ）微信：13391988889

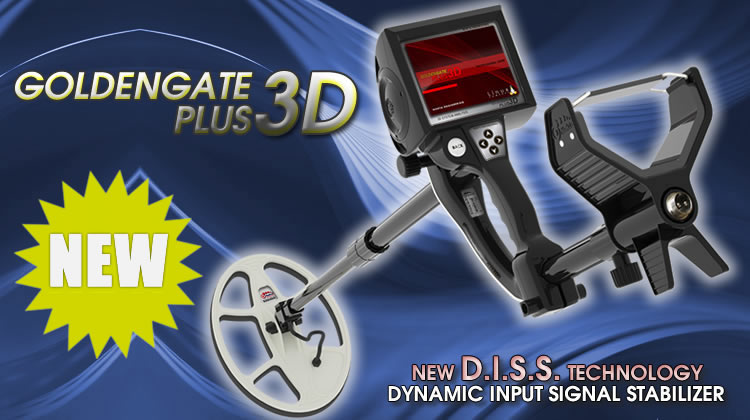

GOLDENGATE PLUS 3D


GOLDENGATE PLUS 3D使普通的金属探测器带给人独特的体验，是世界上第一款能与目标实时进行信号-形状和信号-尺寸关联的金属探测器。GOLDENGATE PLUS 3D 具有内置的GPS。另一个特点是伴随GPS而来的是“跟踪”功能。另外，公司最近开发的D.I.S.S. 技术用在了GOLDENGATE PLUS 3D 技术探测器中。







GOLDENGATE PLUS 3D 将被探测金属识别为3组，即金/有色金属、黑色金属和钢/合金，且立即将探测结果提供给用户。由于有了Nokta Engineering，才使得所有这些技术能首次共同地用于金属探测器。GOLDENGATE PLUS 3D金属探测器的特点在于具有10个语言选项、预定义的搜索模式和个性化的主题，这使得其用户在搜索过程中很舒适。



信号-尺寸关联 信号-形状关联


GOLDENGATE PLUS 3D将从目标上获得的信号与目标尺寸(宽度-长度)相关联。GOLDENGATE PLUS 3D根据地下目标的角度，以厘米为单位显示呈现在3D结果显示屏上的图表上的尺寸。用户可通过查看此数据算出地下目标的尺寸和搜索面积。



GOLDENGATE PLUS 3D可立刻画出被探测金属的3D 图形。GOLDENGATE PLUS 3D用圆形和正方形显示等边目标，用椭圆和长方形显示长的目标。

深度指示器


 GOLDENGATE PLUS 3D在3D结果显示屏上的深度条形图上以厘米将被探测目标的深度显示给用户。
3D 结果显示屏满足金属探测器用户在单一显示屏上的所有期望。像目标的识别、深度、尺寸和图形等，3D结果显示屏既精确又详细地将所有这些用高质量的图形呈现给用户。GOLDENGATE PLUS 3D探测的就是差异！






搜索模式

在GOLDENGATEPLUS 3D中有5个自动的、预定义的搜索模式。选择哪个模式要基于搜索区域的地面构造。设备会自动调节所有必要的设置为搜索做好准备。搜索模式为“通用搜索模式”、“深度搜索模式”、“高矿物模式”、“垃圾金属模式”和“海滩模式”。此外，每种模式的阈值和Rx增益电平由用户自定义设置并保存。





地平衡


由于具有快速DSP技术，GOLDENGATEPLUS 3D可以在每种类型的地面上进行更快更精确的地平衡。此技术根据地面的矿物构造更高效地探测差异，使用户仅在数秒内就能进行地平衡。GOLDENGATEPLUS 3D在搜索期间也连续地检查地面并通知用户。由于技术的强大，搜索也变的更加愉快了!


灵敏度(阈值和Rx增益)设置


在存在高水平的矿物和磁场强度的地面的搜索区域内很难获得精确的搜索结果。这些不良条件使所有探测器用户使用设备更困难。在GOLDENGATEPLUS 3D中, 可以调节灵敏度（阈值和Rx增益）电平。阈值和Rx增益可根据搜索区域的情况而减小或增加。GOLDENGATEPLUS 3D将搜索的灵敏度纳入了考虑范围之中。


识别


GOLDENGATE PLUS 3D向用户即时地提供被探测金属的识别信息和金属识别号。在GOLDENGATE PLUS 3D中也含有用户可以手动更改的识别设置。通过使用此设置，用户可对GOLDENGATE PLUS 3D将哪些金属检测为有色金属和哪些金属检测为黑色金属进行定义。GOLDENGATE PLUS 3D最重要的特点之一是其快速的“恢复速度”。GOLDENGATE PLUS 3D可探测离的很近的黑色和有色金属，并且将搜索显示屏上的每种金属的识别图形显示给用户。


GPS和跟踪

GOLDENGATE PLUS 3D用户可找到正在搜索区域的坐标并将其保存。其也可以查看搜索区域海拔和搜索速度的数据。当将坐标输入至因特网或个人电脑上的地图应用程序（如Google Earth®, Yahoo® Maps等），用户可获得详细的搜索区域信息，如地理特征、历史等。搜索迷途者时无迷路的风险!

跟踪

GOLDENGATEPLUS 3D模型中的“跟踪”特征可创建用户地图。 可将搜索区域绘制成地图，并保存信息，如用户曾经在过的位置、他/她停下并搜索过的位置和他/她走了多远。此特征为返回被保存区域提供了机会。GOLDENGATEPLUS 3D提醒用户在哪里和为什么他/她停下过。由于跟踪特征的存在，搜索变的更容易，搜索区域也不会被忘记。


D.I.S.S. 技术


从地面获得并经处理的信号的质量优点由其清晰度和稳定性来决定。所有探测器和线圈均受气候和环境因素的负面影响。D.I.S.S 技术将这种影响过滤掉，并提高了信号的质量。通过不断检查地面，它使用户进行不间断地搜索。 开发此新技术的Nokta Engineering已将D.I.S.S 用于其所有设备中。


DSP (数字信号处理器)


GOLDENGATEPLUS 3D金属探测器的技术由4个处理器为支撑。以216Mhz的速度工作、并具有32位浮点DSP和16位ADC的辅助处理器，使得GOLDENGATEPLUS 3D可以更快更有效地对信号进行处理。快速地处理数据和将结果传给用户, 同时不会减慢系统的运行速度，并且无故障。


LINUX 操作系统

GOLDENGATEPLUS 3D使用LINUX 技术。Linux 操作系统可无冲突地用于所有计算机平台上。Linux 操作系统拥有庞大的硬件支持, 与包括嵌入式系统、笔记本、服务器、工作站、智能电话和台式机在内的几乎每个平台都完全兼容。

5.7' TFT（薄膜晶体管）显示器


在GOLDENGATEPLUS 3D中使用了TFT技术制造的VGA (640x480)高质量显示器。此高分辨率的显示器使OLDENGATEPLUS 3D使用起来更加容易、更加有趣。GOLDENGATEPLUS 3D让每视觉变的更加清晰。


主题


个性化金属探测器的时代正在开启! 用户根据自己的参数选择可调节GOLDENGATEPLUS 3D的用户界面、搜索和功能提示音以及检查搜索过程中线圈与地面的倾斜度的加速计选项。


数据记录


GOLDENGATEPLUS 3D在其内存中保存跟踪地图、GPS坐标和3D图形。这使得GOLDENGATEPLUS 3D金属探测器进行过的搜索决不会被忘记！


太阳模式


当阳光很强烈且显示屏受影响时使用太阳模式。太阳模式可在GOLDENGATEPLUS 3D的所有菜单界面中使用。使用太阳模式后，可以更容易地在强烈的阳光下阅读和查看。


10种语言支持


用户将用自己的语言进行操作! The GOLDENGATEPLUS 3D可在10种语言下运行：英语、土耳其语、德语、西班牙语、俄语、保加利亚语、希腊语、阿拉伯语和波斯语。


搜索线圈和配件


防水表面搜索线圈19cm x 24cm (9.5')可选防水通用搜索线圈24cm x 32cm (12.5')防水深度搜索线圈32 cm x 40cm (15.7')可选电池110/220伏充电器车载充电器耳机安全带手提包


深度图表

GOLDENGATE PLUS 3D

GOLDENGATE PLUS 3D, which turns the usual metal detector use into a unique experience, is the first metal detector in the world that can make the signal-shape and signal-dimension association with the target in real time. GOLDENGATE PLUS 3D has a built-in GPS. Another feature that comes with the GPS is TRACKING. D.I.S.S. Technology, which we have recently developed, is used in the GOLDENGATE PLUS 3D metal detector.

GOLDENGATE PLUS 3D discriminates the detected metal in 3 different groups as Gold/Non-Ferrous, Ferrous, Steel/Alloy and it provides the results to the user instantly. All these technologies are available in a metal detector collectively for the first time thanks to Nokta Engineering. The GOLDENGATE PLUS 3D metal detector, which features 10 language options, pre-defined search modes and personalizable themes, will enable their users to enjoy pleasant searches.

SIGNAL-DIMENSION ASSOCIATION SIGNAL-SHAPE ASSOCIATION

The GOLDENGATE PLUS 3D associates the signal obtained from the target with its dimensions (width-length). Based on the angle of the target underground, the GOLDENGATE PLUS 3D shows the dimensions in terms of centimeters on the chart that is present on the 3D result screen. The user can figure out the dimensions of the target underground as well as the search area by looking at this data.


The GOLDENGATE PLUS 3D can draw the 3D graph of the detected signal instantly. The GOLDENGATE PLUS 3D shows the equilateral targets by using circle and square-like shapes and the long ones by using ellipse and rectangular-like shapes to its user.



DEPTH INDICATOR


The GOLDENGATE PLUS 3D shows the depth of the detected target in terms of centimeters on the depth bar present on the 3D result screen to the user.

3D result screen satisfies all the expectations of a metal detector user on a single screen. The discrimination, depth, dimensions and the graph of the target... 3D result screen provides them all both accurately and in detail with high quality graphics to its user. Detect the difference with the GOLDENGATE PLUS 3D!




SEARCH MODES

There are 5 automatic, pre-defined search modes in the GOLDENGATE PLUS 3D. The mode is selected based on the ground structure of the search area. The device adjusts all the necessary settings automatically and gets them ready for searching. These modes are General Search Mode, Deep Search Mode, High Mineral, Trash Metal and Beach Mode. In addition, the threshold & RX Gain levels for each mode can be customized and saved by the user.




GROUND BALANCE The GOLDENGATE PLUS 3D makes faster and more accurate ground balancing on every type of ground due to its fast DSP technology. This technology detects the differences based on the mineral structures of the ground more efficiently and enables the users to make ground balancing in seconds only. The GOLDENGATE PLUS 3D checks the ground continuously during search, too, and informs the user. Searching becomes more enjoyable with the power of technology!

SENSITIVITY (THRESHOLD & RX GAIN) SETTING

It is hard to get accurate results in areas where the ground has high levels of minerals and magnetic density. These unfavorable conditions make the device usage harder for all detector users. In the GOLDENGATE PLUS 3D, the sensitivity (Threshold & RX Gain) level can be adjusted. Based on the conditions of the search area, the threshold & RX Gain can be decreased or increased. The GOLDENGATE PLUS 3D takes the sensitivity of the search into consideration.

DISCRIMINATION

GOLDENGATE PLUS 3D provides the user with the discrimination information and the metal ID of the detected metal instantly. A discrimination setting that the user can change manually is also available in the GOLDENGATE PLUS 3D. Users, by using this setting, can define which metals the GOLDENGATE PLUS 3D will sense as non-ferrous and which ones as ferrous.One of the most important features of the GOLDENGATE PLUS 3D is its fast RECOVERY SPEED. GOLDENGATE PLUS 3D can detect ferrous and non-ferrous metals located in close proximity and it shows the discrimination graph of each metal right on the search screen to the user.

GPS and TRACKING

The GOLDENGATE PLUS 3D users can find out the coordinates of the areas they are searching in and save them. They can also view data about the altitude of the area and the search speed. They can obtain detailed information about the area such as the geographical characteristics, the history etc. when the coordinates are entered into mapping applications (Google Earth®, Yahoo® Maps etc) present on the Internet or on PCs. There is no risk of getting lost while searching for the lost!


TRACKING

User maps can be created by the TRACKING feature in the GOLDENGATE PLUS 3D model. Search areas can be mapped and information such as where the user has been, where he/she has stopped and searched, and how far he/she has gone can be saved. This feature provides a chance to go back to the saved areas. The GOLDENGATE PLUS 3D reminds the user where and why he/she has stopped. Searches become easier and the search areas are never forgotten thanks to the tracking feature.

D.I.S.S. TECHNOLOGY

The quality merit of the signal obtained from ground and processed is determined by its clarity and stability. All detectors and coils are affected negatively by climatic and environmental factors. The D.I.S.S technology filters the effect as a result of these factors and increases the quality of the signal. It enables you to search uninterruptedly by checking the ground constantly. Nokta Engineering who has developed this new technology uses D.I.S.S in all its devices.

DSP (Digital Signal Processing)

The GOLDENGATE PLUS 3D metal detector's technology is powered by 4 processors. The GOLDENGATE PLUS 3D can process the signal much faster and more effectively due to a secondary processor that works at a speed of 216MHz and has a 32-bit Floating Point DSP and a 16 bit ADC. The search data are processed and the results are given to the user fast, without slowing down the system, and trouble-free.

LINUX OPERATING SYSTEM

The GOLDENGATE PLUS 3D uses LINUX technology. The Linux operating system can be used on all computer platforms without complications. The Linux operating system, which has huge hardware support, works in total harmony on almost every platform including embedded systems, notebooks, servers, work stations, smart phones and desktops.

5.7' TFT DISPLAY In the GOLDENGATE PLUS 3D, , , a VGA (640x480) high quality display, produced with the TFT technology, is used. This high resolution display makes the GOLDENGATE PLUS 3D's use easier and turns it into fun. Everything seems clearer with the GOLDENGATE PLUS 3D.

THEMES

The personalizable metal detector age is starting! Users, based on their preferences, can adjust the user interfaces of the GOLDENGATE PLUS 3D, the search & functional warning tones, and the accelerometer option that checks the inclination of the coil with the ground while searching.

DATA RECORDS

GOLDENGATE PLUS 3D saves the tracking maps, the GPS coordinates, and the 3D graphics in its memory. Searches made by the GOLDENGATE PLUS 3D metal detector are never forgotten!

SUN MODE

Sun mode is used when the sunlight is intense and the screen gets affected by it. The sun mode can be used in all the menu interfaces of the GOLDENGATE PLUS 3D. It provides easier reading and viewing under intense sunlight.

10 LANGUAGE SUPPORT

You will manage technology in your own language! The GOLDENGATE PLUS 3D operates in 10 languages: English, Turkish, German, French, Spanish, Russian, Bulgarian, Greek, Arabic and Persian.

SEARCH COILS AND ACCESSORIES

Waterproof Surface Search Coil19cm x 24cm (9.5')OptionalWaterproof General Purpose Search Coil24cm x 32cm (12.5')Waterproof Deep Search Coil32 cm x 40cm (15.7')OptionalBattery110/220 Volt ChargerCar ChargerHeadphonesCarrying HarnessCarrying Bag

DEPTH CHART
